Motor och drivlina

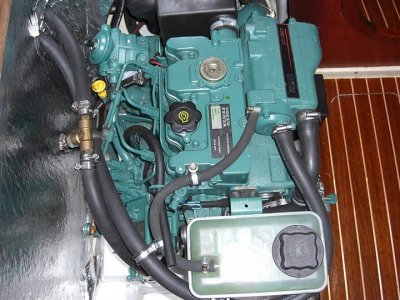

Volvo Penta D1-30 Årsmodell 2006.



Volvo Penta D1-30 Årsmodell 2006

Backslag renoverat 2014 av auktoriserad VP verkstad

På land. Maxprop folding propeller med ställbar stigning. Denna typ av propeller är överlägsen en vanlig foldingpropeller eftersom denna ger samma effekt i såväl fram som back.



Nedan utförlig info om hur det gick till när Bosse bytte motor 2006:

Yesturday Kari and I removed the old steamer out of Isabelle. It took us approx 4 hours from first hose removed until pushed into Karis car. We worked really as a team, Kari working from the gearbox and me from the forward section, undoing the generator, hoses and mounts. The tricky part was moving it along the upper tube, making the top of the boathouse. The aluminium tubes performed well but with some doubts. Lifting the new engine on place was easier, maybe also due to the smaller size and some lesser weight. Well the area below the old engine has never been really cleaned thouroully and the pics below might give some indication proving just that hmm not a nice one. The fluid is spillage of anti-freeze and diesel after removing the different hoses.
Anyhow the new engine is at least inside now and there is time for "the big cleanup". I will paint the bilge with some off-white epoxy paint as soon as the temperature as rised above 10 deg C (50 deg F) so the paint will cure.



If Mohammed cant come to the mountain!!

On the move..

Almost as happy as a moose hunter.

Hanging inside

See what I mean, not so nice, huughee!!!
Soon to be a nicer area.

2006-04-09

So finally I seems to find my time to start overhauling Isabelle, yesturday I cleaned out the engine bed. I will on friday start to sandpaper the area and then paint it with epoxypaint.

I also reinstalled the compressor frige, it has been taken to service and a filter replacement. The filter have to be replaced in a way that the tubings are cut just fore and aft of the filter. The new filter is then soldered back.

I also had one of the new Lewmar hatches just to investigare how I should go thru when installing all three on thursday.

Some pics, take care.

2006-04-16
At the moment I have just finished painted the engine compartment with an Off-White polyuretan color.
Also just done the three Lewmar hatches, boy I am busy. But I know whats to come, a fit tool in a beatiful enviroment.

Here are som pics of the new steamer. Unfortunattly the company selling me the engine gave me the wrong gearbox, they gave me a straight one when I needed an angle gearbox. And now I just discovered that they havent sent me the engine-shield that acts as an interphase between engine and the gearbox, o'boy. Inserting a pic so you see what I mean.
One thing that aslo worries me I is the small clearance between the alternator and one of the engine mounts, this doesnt leave me with too much room for adjusting the engine to the propeller shaft.

By the way I didnt take any pictuers after I have painted the engine compartment.

Take care.



2006-05-10
I am slowing but surely moving forward, an engine replacement has so many different sub-processes.
At the moment I am very glad over the fact that I had a full steel beam plasted into the two keel frames. This made it possible to just drill and thread new bolt holes without having to open the frame and use loose nuts from below as I have seen other was forced to. Inserting some new pics. One of them showing how I am lifting the engine when mowing it around.

Also inserting a pic of my new and larger ( 3/4" ) thru hull fitting. This was necessary due to the engine replacement.



2006-05-13 22:53
Just a quick one before turning in.

2006-05-20
Greetings all.
I have now started the new engine and it runned very smoothly, what may be a little concerning is that the propeller shaft is knocking on the sterntube when running at idle. This is not something new, it did it also before but it is so obvious when running the engine on dry land. I connected the speed and gear control cables yesturday as also the positive and negative power leads. Then I just bleeded the fuel system and she started perfect. Today I will run her a little more extensivly. Inserting some new pics of the installation.

This project will be closed the next few days. Lessons learned: ALWAYS check the items delivered by your local boat-gear pusher before accepting the boxes and hang on like a tiger if something is wrong.

Här kommer bilderna på dragningen av avgasslangen.
